Hoʻomaka i ka pololefin pālua pā paia shrinkable tubing:
ʻO ka paipu shrinkable pālua pā pālua Polyolefin he mea pono pololefin hoʻomehana shrinkable tube. Hana ʻia ia e ke kaʻina hana pālua pālua o ka polyolefin-based halogen-free flame-retardant material a me ka adhesive hoʻoheheʻe wela. Hana ʻia ka papa o waho o polyolefin, nona nā ʻano o ka hoʻīpī, pale ahi ʻole halogen, a me ka hoʻohaʻahaʻa wela haʻahaʻa; ʻo ka papa o loko o ka laka hoʻoheheʻe wela he mea maikaʻi o ka wahi hoʻoheheʻe haʻahaʻa, hoʻopili maikaʻi, kahi paʻa wai ʻole a me ka buffering mechanical mechanical. Ka wela shrinkable Tube i kiʻekiʻe wela shrinkage a me ka palupalu ia'ku. ʻO nā mea maikaʻi o ka hoʻā ʻana, ka pale a me ka pale ʻana i ka pala.
ʻO ka Polyolefin pālua pā pā shrinkable tubing hana:
ʻIkepili ʻenehana
|
Kaha |
Standard |
Tʻano hana esting |
Waiwai maʻamau |
|
Thoʻokau i ka ikaika |
≥24.1MPa |
ASTM D638 |
≥35MPa |
|
Elongation ma ka haki |
≥150% |
ASTM D638 |
≥300% |
|
Elongation ma ka haki after aging |
≥100% |
ASTM D638 (225℃/ 168h) |
≥200% |
|
Hoʻoikaika wela |
ʻAʻohe mau māwae |
ASTM D2671(225â "ƒ / 4h) |
ʻAʻohe mau māwae |
|
Hoʻololi ka mahana haʻahaʻa |
ʻAʻohe mau māwae |
ASTM D2671(-55â „ƒ / 4h) |
ʻAʻohe mau māwae |
|
Kūpale me ka uila |
AC2500V / 60S (No breakdown) |
ASTM D2671 |
ʻAʻohe breakdown |
|
Volume resistivity |
â ‰ ¥ 1011© .cm |
ASTM D876 |
â ‰ ¥ 1011© .cm |
|
Ka popopo keleawe |
ʻAʻohe popopo |
ASTM D2671(158℃/ 168h) |
ʻAʻohe popopo |
|
Kāpae ahi |
VW-1 |
UL 224 |
Hoʻoholo |
Fnā hiʻohiʻona o ka polyolefin pālua pā paia shrinkable tubing:
1. ʻO ka lakio hoʻohālikelike he 2: 1, 3: 1 4: 1
2. ʻO ka mahana Shrinkage: 70â "initial, ka palena iki o ka hōʻemi ʻana 125â" ƒ
3. Ka mahana hana: -45â „ƒï½ž + 125â„ ƒ
4. Nā kikoʻī: 1.2mm～50.8mm
5. Palapala hōʻoia: RoHS, UL.
6. Waihoʻoluʻu maʻamau: ʻeleʻele (hiki ke hāʻawi ʻia nā kala ʻē aʻe e like me nā koi o nā mea kūʻai aku)
7. Nā pono hana: Hahana me ka umu a me ka pū ea wela e emi ai. ʻO ka mahana hope loa o ka pololefin heat-shrinkable tube e pili ana i ka mahana kahi e emi ai ka pahu wela-shrinkable, hiki ke hana i ka polyolefin heat-shrinkable tube i ke ana wela o ka shrinkage piha, e like me Say i kā mākou polyolefin pālua-pā hoʻomehana wela-shrinkable Tube i 84 ° C. ʻAʻole ia e like me ka tendon cowhide. Pono wau e hoʻopaʻa a hiki i ka nui o ia, a hoʻi hou ka tendon cowhide a hoʻi i kona ʻano maoli ke hoʻokuʻu wau. ʻAʻole like kēia kā mākou paipu wela-shrinkable. Ke hoʻomehana ʻia i 84â "ƒ, ʻaʻole ia e hoʻololi koke i kona ʻano kumu e like me nā tendon cowhide. ʻO ka shrinkage o kā mākou polyolefin heat-shrinkable tube kahi hana lohi. Hoʻohana mākou i ka paipu wela-shrinkable polyolefin ke wela ʻia i 84â "ƒ, hōʻike wale ia i ka shrinkage, a ʻaʻole hiki iā ia ke hōʻemi loa i ka paipu wela-shrinkable polyolefin Pono mākou e hoʻomau i ka wela a wela iā ia i ka mahana shrinkage hope loa. Inā he 125â „ƒ, a laila hiki ke hana aelike loa. ʻūholo.
Pākuʻi noi ʻōnaehana hoʻoliʻiliʻi polyolefin pālua pā:

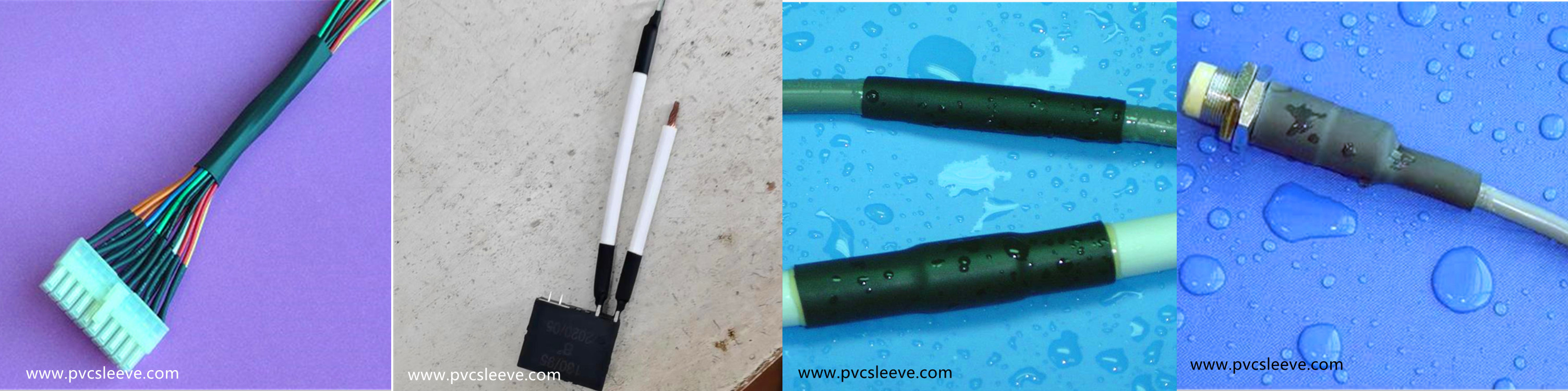

ʻO ka paipu wela-shrinkable o Polyolefin kahi maikaʻi o ka lapalapa ahi a me nā mea hoʻoheheʻe, palupalu a lahilahi hoʻi, haʻahaʻa ke anuanu o ka mahana, a emi koke. Hiki ke hoʻohana ākea ʻia i ka pilina uea, ka hoʻopau ʻana o ka uea, pale pale solder, ʻike pono ʻana i ke kaula uila, ke kūpaʻa a me ka capacitance insulation Protection, ka pale ʻana o ka corrosion o nā koʻokoʻo a me nā paipu, pale o nā antennas, a me nā mea ma lalo o ka hana o nā kukuna ikaika loa, hana ka mea polymer linear i kahi kūkulu kikowaena i ʻekolu dimensional kikowaena. Ua hoʻomaikaʻi maikaʻi ʻia nā mea polymer i hoʻopili ʻia i ka ikaika o ka mīkini, ka pale wela, ke kūpale ʻana o ka mea ʻino, a me nā kūpale kūnewa, ʻo ia hoʻi ka ʻakika a me ka alkali kūʻē.
Nā palena o ka polyolefin pālua pā pā shrinkable tubing:
Lākiō Shrinkage
|
Ka nui maʻamau (mm) |
ʻO ke anawaena o loko ma mua o ka emi ʻana (mm) |
I kā mākou anawaena o hope ma hope shrinking (mm) |
Ka mānoanoa o ka paia ma hope o ka emi ʻana (mm) |
ʻO ka lahilahi pale paʻa (mm) |
Ka lōʻihi o ka lawe ʻana(m) |
|
|
ʻOki ʻoki |
Raiki / ʻolokaʻa |
|||||
|
3.2 / 1.6 |
3.2 |
1.60 |
0.75 + 0.05 |
0.35 |
1.22 |
200 |
|
4.8 / 2.4 |
4.8 |
2.40 |
0.75 + 0.05 |
0.35 |
1.22 |
100 |
|
6.4 / 3.2 |
6.4 |
3.20 |
0.75 + 0.05 |
0.35 |
1.22 |
100 |
|
9.5 / 4.8 |
9.5 |
4.80 |
0.80 + 0.05 |
0.35 |
1.22 |
100 |
|
12.7 / 6.4 |
12.7 |
6.40 |
0.80 + 0.05 |
0.35 |
1.22 |
50 |
|
19.1 / 9.5 |
19.1 |
9.50 |
0.95 + 0.05 |
0.35 |
1.22 |
50 |
|
25.4 / 12.7 |
25.4 |
12.70 |
1.15 + 0.05 |
0.35 |
1.22 |
50 |
|
38.1 / 19.0 |
38.1 |
19.00 |
1.25 + 0.05 |
0.35 |
1.22 |
30 |
|
50.0 / 25.0 |
50.0 |
25.0 |
1.40 + 0.05 |
0.35 |
1.22 |
30 |
|
60.0 / 25.0 |
60.0 |
25.0 |
2.30+ 0.20 |
0.80 |
1.22 |
15 |
|
70.0 / 30.0 |
70.0 |
30.0 |
2.30+ 0.30 |
0.90 |
1.22 |
15 |
|
80.0 / 30.0 |
80.0 |
30.0 |
2.30+ 0.30 |
0.90 |
1.22 |
15 |
|
90.0 / 40.0 |
90.0 |
40.0 |
2.30+ 0.40 |
0.90 |
1.22 |
15 |
|
100.0 / 40.0 |
100.0 |
40.0 |
2.30+ 0.40 |
0.90 |
1.22 |
15 |
Lakio hoʻoliʻiliʻi 3 mau manawa
|
Ka nui maʻamau (mm) |
ʻO ke anawaena o loko ma mua o ka emi ʻana (mm) |
I kā mākou anawaena o hope ma hope shrinking (mm) |
Ka mānoanoa o ka paia ma hope o ka emi ʻana (mm) |
ʻO ka lahilahi pale paʻa (mm) |
Ka lōʻihi o ka lawe ʻana(m) |
|
|
ʻOki ʻoki |
Raiki / ʻolokaʻa |
|||||
|
3.0 / 1.0 |
3.0 |
1.00 |
1.00+0.20 |
0.50 |
1.22 |
200 |
|
4.8 / 1.6 |
4.8 |
1.60 |
1.00+0.20 |
0.50 |
1.22 |
100 |
|
6.0 / 2.0 |
6.0 |
2.00 |
1.00+0.20 |
0.50 |
1.22 |
100 |
|
9.0 / 3.0 |
9.0 |
3.00 |
1.40+0.20 |
0.60 |
1.22 |
100 |
|
12.0 / 4.0 |
12.0 |
4.00 |
1.78+0.30 |
0.76 |
1.22 |
50 |
|
18.0 / 6.0 |
18.0 |
6.00 |
2.25+0.50 |
0.76 |
1.22 |
50 |
|
24.0 / 8.0 |
24.0 |
8.00 |
2.54+0.50 |
1.00 |
1.22 |
50 |
|
30.0 / 10.0 |
30.0 |
10.00 |
2.54+0.50 |
1.00 |
1.22 |
30 |
|
40.0 / 13.0 |
40.0 |
13.00 |
2.54+0.50 |
1.00 |
1.22 |
30 |
|
50.8 / 19.1 |
50.8 |
19.10 |
2.54+0.50 |
1.00 |
1.22 |
30 |
Lakio hoʻoliʻiliʻi 4 mau manawa
|
Ka nui maʻamau (mm) |
ʻO ke anawaena o loko ma mua o ka emi ʻana (mm) |
I kā mākou anawaena o hope ma hope shrinking (mm) |
Ka mānoanoa o ka paia ma hope o ka emi ʻana (mm) |
ʻO ka lahilahi pale paʻa (mm) |
Ka lōʻihi o ka lawe ʻana(m) |
|
4/1 |
4.0 |
1.00 |
1.00+0.20 |
0.50 |
1.22 |
|
8/2 |
8.0 |
2.00 |
1.00+0.20 |
0.50 |
1.22 |
|
12/3 |
12.0 |
3.00 |
1.40+0.20 |
0.60 |
1.22 |
|
16/4 |
16.0 |
4.00 |
1.78+0.30 |
0.76 |
1.22 |
|
24/6 |
24.0 |
6.00 |
2.25+0.50 |
0.76 |
1.22 |
|
32/8 |
32.0 |
8.00 |
2.54+0.50 |
1.00 |
1.22 |
ʻŌlelo:
â € ¢ Waihoʻoluʻu maʻamau: ʻeleʻele (-BK)
â € ¢ Non-standard kala: keʻokeʻo (-WH), ʻulaʻula (-RD), melemele (YL), polū (-BL), ʻōmaʻomaʻo (-GR), aniani moakaka (-CL, pale ahi ʻole)
â € ¢ Ka nui ʻole maʻamau: hiki ke hāʻawi ʻia nā huahana nui ʻole maʻamau ma ke noi
â € ¢ Nā ʻōkuhi kauoha: kikoʻī i ke ana huahana, hōʻike kikoʻī, kala
â € ¢ ʻO nā hualoaʻa i ka papaʻa he ʻikepili maʻamau o kēia huahana hoʻohālikelike, a e loaʻa i kēlā me kēia pūʻulu o nā huahana kahi hoʻololi.
Hōʻoiaʻiʻo e like ai
No kēlā me kēia huahana, e hoʻolālā mākou i kahi pono hoʻāʻo hoʻolaʻa. He hōʻike empirical kēlā me kēia huahana. ʻAʻole kahi hoʻāʻo wale. ʻO kēia kekahi o nā pono hana hoʻāʻo huahana.
Heat shrinkable braided lole lima huahana palapala:
ʻO ka SGS ka palekana palekana kaiapuni, ka papa retardant o ka ahi ʻo UL94-V0. ʻO ke kiʻekiʻe o ka pale o ke kaiapuni a me ka hana ʻana o ka lapalapa ahi, ʻoi aku ka maikaʻi o ka lawe aku.
Hoʻolauna lawelawe: Hoʻolauna i nā lawelawe kaapuni:
Kūʻai kūʻai mua:E kamaʻilio ikaika nā kūʻai mua me nā mea kūʻai aku i ka ʻike kikoʻī, nā pono o nā mea kūʻai aku, nā palena huahana, nā kūlana maikaʻi, hāʻawi i nā kūkākūkā ʻana, e ʻae i nā kauoha kelepona a me nā leka uila, hāʻawi i nā ʻano lawelawe kūpono a me nā lawelawe kālā, a pēlā aku.
Kūʻai:Hāʻawi ka kūʻai aku i nā mea kūʻai aku me nā hopena me ka lakio hana-i-ke kumukūʻai maikaʻi loa, e alualu me ka ikaika i ke kau inoa ʻana i ka ʻaelike, ka lawe ʻana i nā waiwai, a kōkua i nā mea kūʻai aku e hoʻoponopono i nā pilikia.
Ma hope o-kūʻai aku:
1. ʻO ka hōʻoluʻolu i hoʻokumu ʻia e ka maikaʻi o ka huahana ponoʻī. E kōkua mākou i nā mea kūʻai aku e hoʻoponopono i ka pilikia i ka wā hiki loa i loko o ka manawa i ʻaelike ʻia.
2. Inā ʻaʻole hiki ke hoʻohana maʻamau i ka huahana ma muli o nā kumu i hana ʻia e ke kanaka. Wehewehe mākou i ke kumu o ka pilikia i ka mea kūʻai, e hōʻike nei ʻaʻole uhi ʻia kēia ʻano pilikia e kā mākou palapala hoʻokō, a laila hāʻawi i nā hāʻina ʻē aʻe i ka mea kūʻai aku e pili ana i ka pilikia o ka mea kūʻai.
Nā mea mālama a me nā halihali
1. Kūpono ʻole kēia huahana a pono e sila ʻia a mālama ʻia i kahi wahi anuanu e pale ai i ka ua a me ka lā.
2. Hōʻalo i ka launa ʻana me nā waikawa ikaika, sulfur, nā phosphor a me kekahi o nā paʻakai metala i ka wā o ka hana.
